GIGABYTE B450 AORUS PRO Wi-Fi (AMD Ryzen AM4/ATX/M.2 Thermal Guard with Onboard Wi-Fi/HDMI/DVI/USB 3.1 Gen 2/DDR4/Motherboard)

Brand	Gigabyte
CPU Socket	Socket AM4
Compatible Devices	Personal Computer
RAM Memory Technology	DDR4
Compatible Processors	AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics ProcessorsAMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset Type	Intel B450
Memory Speed	3600 MHz
Platform	Windows 8.1, Windows 8, Windows, Windows 10
CPU Model	AMD Ryzen 7
Memory Storage Capacity	64 GB

---

About this item

• Supports AMD 1st & 2nd generation Ryzen/ Ryzen with Radeon Vega graphics processors.Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Dual channel non-ECC unbuffered DDR4, 4 DIMMs

• Intel Ethernet LAN plus Dual band 802.11AC Wi-Fi

• Dual PCIe Gen3 M.2 NVMe with dual thermal guards

• Alc1220 vb enhanced audio with WIMA capacitors. Support for 11AC 160MHz wireless standard and up to 1.73 Gaps data rate. Intel WI-FI driver only support for Win10 64bit

• RGB Fusion with digital LED & RGB LED headers

• Smart fan 5 with fan stop

• USB 3.1 Gen 2 with USB type C & type A

• Integrated I/O shield of ultra-durable design

• CEC 2019 ready

AORUS Finish

GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen 2000 series processors' computing performance with more features and more control. Maximize your PC's potential with AMD Store MI technology, which accelerates traditional storage devices to reduce boot times and enhance the overall user experience.

Dual M.2 with Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

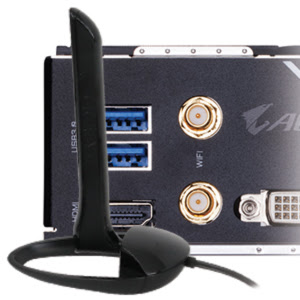

Built-In WI-FI

The onboard 802.11ac WIFI module from Intel supports Dual Band, which runs up to 433 Mbps (3x faster than the 802.11n) and also supports BLUETOOTH 4.2.

GIGABYTE / AORUS Features

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard.

The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Motherboard BIOS update for AMD Ryzen 5000 series processors

1. From GIGABYTE’s website, download the latest compressed BIOS update file that matches your motherboard model from its product page.
2. Un compress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE. bin. Note: The USB flash drive must use the FAT32/16 file system.
3. Insert the USB flash drive into the white USB port or BIOS Q Flash port on the back panel of your motherboard (USB port may not be labelled on all models, checking the user manual is recommended)
4. Connect the power cables to the CPU 8 Pin power connector (connect either one if there are two) and mainboard 24 Pin power connector.
5. Press the Q-Flash Plus button (location may vary by model) and the system will automatically search and match the BIOS file in the USB flash drive on the white USB port. The QFLED and the Q-Flash Plus button on the rear panel will flash during the BIOS matching and flashing process. Wait for 2-3 minutes and the QFLED will stop flashing when the BIOS flashing is complete.

Product Description

Supports AMD 2nd generation Ryzen/ Ryzen with Radeon Vega graphics/ 1ST generation Ryzen processors Dual Channel Non ECC Unbuffered DDR4, 4 DIMMs Intel Dual Band 802.11AC Wi-Fi & BT 4.2 HDMI, DVI D ports for multiple display integrated I/O shield of Ultra durable Design Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with dual thermal guards ALC1220 VB enhanced 114dB(Rear)/ 110dB(Front) SNR in microphone with WIMA audio capacitors RGB Fusion with Multi Zone LED light Show design, Supports Digital LED & RGB LED strips Intel Gbe LAN with cFosSpeed Internet Accelerator Software Smart Fan 5 features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP app Center Including Easy Tune and Cloud Station Utilities CEC 2019 Ready, Save power with a single click. Atx Form Factor; 30.5 cm x 24.4 cm.
